SOLAR STRUCTURE SET

The 3kW, 4kW, and 5kW Solar Structure Sets are high-quality, durable mounting solutions designed for efficient installation of rooftop solar systems. Made with robust Apollo rafter and purlin sections, these structure kits ensure strong support, corrosion resistance, and long-term stability for residential and commercial solar installations.

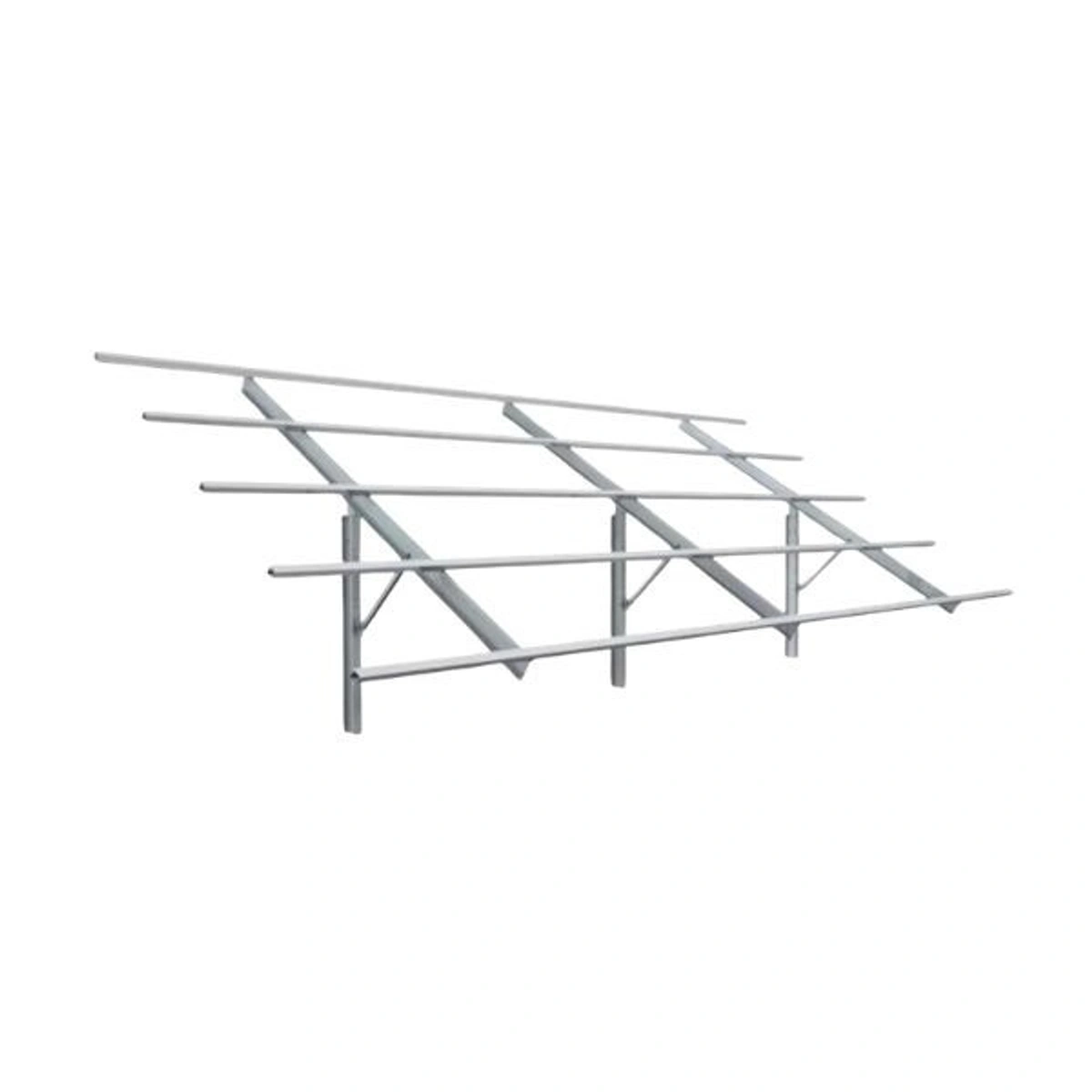

The Solar Structure Set (3kW, 4kW, and 5kW variants) is a complete mounting solution engineered for easy and secure installation of solar panels. Built using premium-grade Apollo steel sections, the structure provides excellent load-bearing capacity and resistance against harsh weather conditions.

Each set includes rafters, purlins, base plates, fasteners, nut-bolts, and module clamps (mid & end clamps), ensuring a ready-to-install package for EPC contractors and installers. The optimized design allows quick assembly, reducing installation time and labor costs.

These structures are ideal for residential, commercial, and small industrial rooftop solar projects. With precise dimensions and sturdy construction, they ensure proper panel alignment, improved performance, and long service life.

3 kW Structure Set

• Apollo Rafter (80x40) 21ft – 3 pcs
• Apollo Purlin (40x40) 21ft – 4 pcs
• Base Plate – 4 pcs
• Fasteners – 16 pcs
• Nut-Bolt – 36 pcs
• Mid Clamp – 8 pcs
• End Clamp – 8 pcs

4 kW Structure Set

• Apollo Rafter (80x40) 21ft – 4 pcs
• Apollo Purlin (40x40) 21ft – 5 pcs
• Base Plate – 6 pcs
• Fasteners – 24 pcs
• Nut-Bolt – 48 pcs
• Mid Clamp – 12 pcs
• End Clamp – 12 pcs

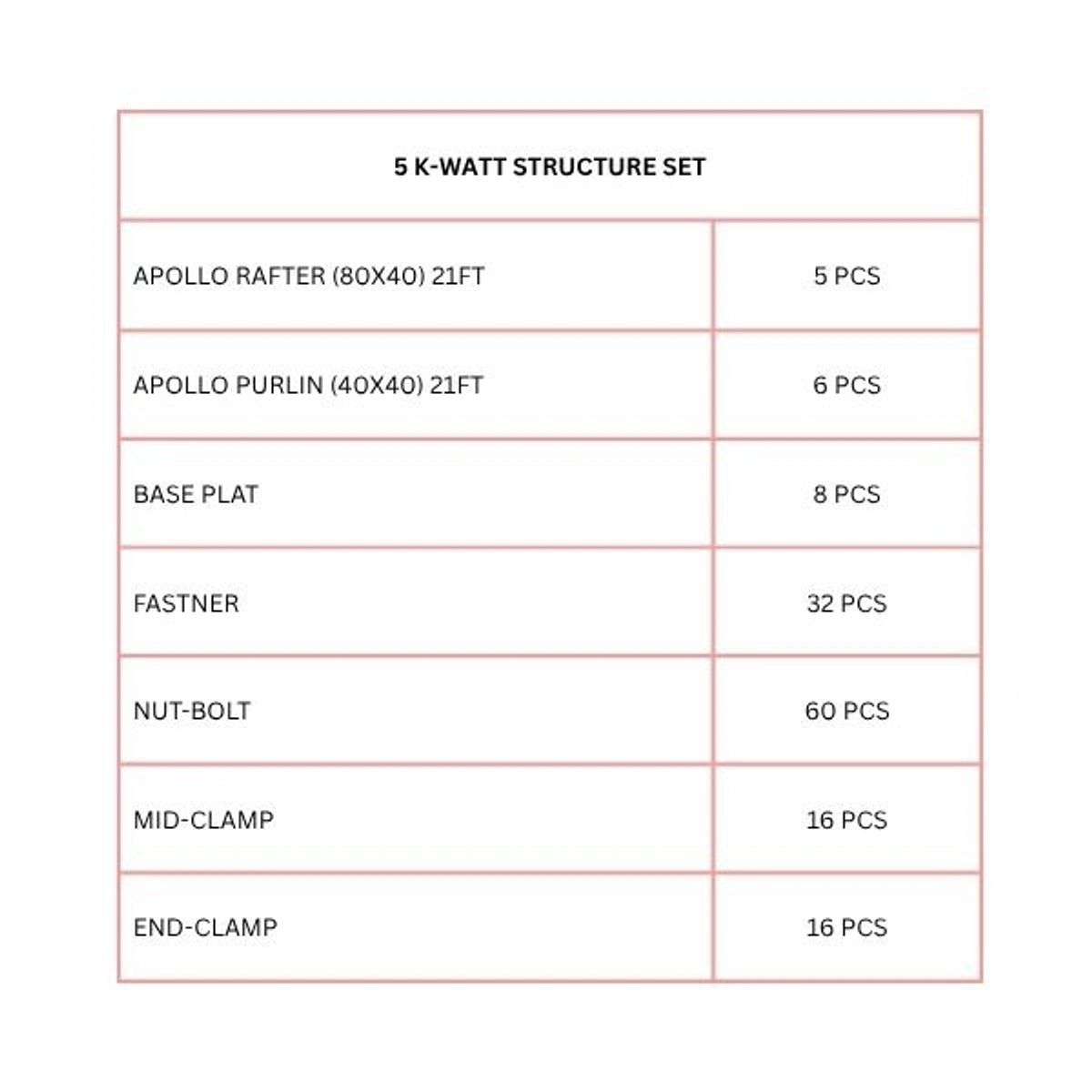

5 kW Structure Set

• Apollo Rafter (80x40) 21ft – 5 pcs
• Apollo Purlin (40x40) 21ft – 6 pcs
• Base Plate – 8 pcs
• Fasteners – 32 pcs
• Nut-Bolt – 60 pcs
• Mid Clamp – 16 pcs
• End Clamp – 16 pcs
